World's First USB4®Gen4 80Gbps 240W USB Type-C® Cable Certification

2024.09.06

We are glad to announce that JOHNSON COMPONENTS & EQUIPMENTS CO., LTD (Member of CTi Group) obtained the world's first  USB4® Gen4 80Gbps 240W USB Type-C®  Cable certification.

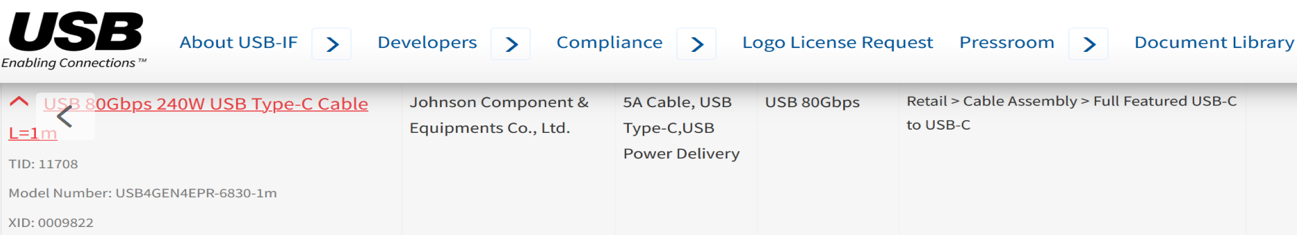

JOHNSON COMPONENTS & EQUIPMENTS CO., LTD is the first and exclusive official manufacturer to obtain the certification in the world and is now listed on USB-IF site's Integrator List.

Certified Product
TID11708;
Model Number: USB4GEN4EPR-6830-1m

What's new?

Reviewing back to September 2019 which USB Implementers Forum(USB-IF) introduced the USB4 specification. It combined data and video transmission and increased transfer speeds to 20Gbps(10Gbps x2) and 40Gbps(20Gbps x 2).Along with a fast charging capability of up to 240W Power Delivery, it full meet the needs of users for high-resolution displays and fast charging.To meet the rapidly growing demands of global high-performance computing(HPC) applications, USB-IF has released the latest USB4 Version2.0 specification.This new version offers ultra-high transfer speeds from 40Gbps to 80Gbps(40Gbps x2) to accommodate the continuously increasing data volume and higher resolution audio and video standards.

Features of the USB4 Gen4 80Gbps

This USB-IF certified USB4® 80Gbps 240W USB Type-C® high-frequency high-speed cable has the following features:

High-Speed Transmission and Power Efficiency: JCE-designed connector is produced through an automated manufacturing process, ensuring a stable transmission rate of 80Gbps. It supports the latest PD3.1 EPR 240W power standard (48V/5A), providing efficient power delivery.

Wide Compatibility: The cable supports DisplayPort 2.1 and PCIe 4, with the capability to output up to 16K@60Hz resolution.

Versatile Applications: It is suitable for a wide range of devices, including laptops, high-performance workstations, monitors, data center equipment, hubs, and gaming consoles. It meets diverse needs for data, video, audio, and power transmission.

Evolution of USB4

Version USB4 Gen2 USB4 Gen3 USB4 Gen4
Transfer Speed 20Gbps 40Gbps 80Gbps
Power up to 240W up to 240W up to 240W
Video 8K@60Hz 8K@60Hz 16K@60Hz

With the European Union, India, Brazil, and other regions announcing that mobile devices must mandatorily adopt the Type-C® interface starting in 2025, it is expected that over 5 billion devices worldwide will use Type-C® by 2026. Type-C® has become the mainstream interface for both the present and future, playing a crucial role in high-bandwidth applications and multi-protocol transmission.

To find out more about CTi’s USB4® or Type-C® cables, please visit the CTi official website: https://www.cticable.com.tw or contact sales@cticable.com.tw for more information.


CTi Group is a professional cable OEM/ODM solution provider established in Taiwan for over 60 years. CTi Group has been dedicated to the integrity of high-frequency and high-speed cable industry for many years which provides customers with product design, development, and production solution by integrating outstanding tooling design, industrial automation, and procedure capability. CTi Group’s main products include LAN Cable, LAN patch cord, HDMI, USB, DP, Industrial and Medical cable, etc.
