Features
-
- PFAS Free
- USB-IF Certified
- The world's first certified USB4 Gen4 cable
- Longest certified for USB4 Gen4 1m
- Data rate up to 80Gbps for USB4 Gen4, and 20Gbps for
USB3.2 Gen2
- Support maximum 240W（48V / 5A）according to PD3.1
- Reversible cable direction & plug orientation
- Supports DP Alt mode
Applications
- PC/NB
- Storage Devices
- Industrial Camera
- Medical Equipment
- Mobile Phone
- Game console
- Wearable devices
-
-

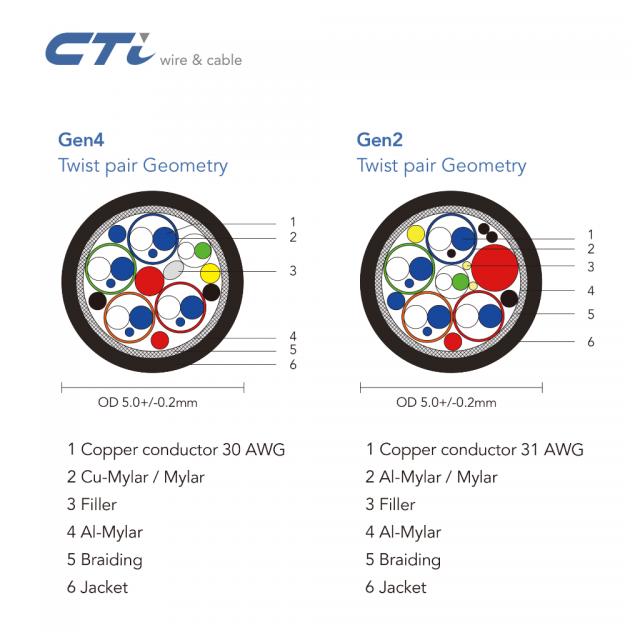

USB Version Length OD AWG Emarker Power Delivery TID Cable Geometry Current Rating Speed USB4 Gen4 1.0m 5.0+/-0.2mm TPE #30 PD 3.1 240W 11708 Twist pair 5A 80G USB3.2 Gen2 1.0m 5.0+/-0.2mm PVC #31 PD 3.1 100W 5200000348 Twist pair 5A 10G / 20G USB3.2 Gen1 2.0m 5.0+/-0.2mm PVC #31 PD 3.1 100W 3570 Twist pair 5A PVC
-
Features & Applications
Features
-
- PFAS Free
- USB-IF Certified
- The world's first certified USB4 Gen4 cable
- Longest certified for USB4 Gen4 1m
- Data rate up to 80Gbps for USB4 Gen4, and 20Gbps for
USB3.2 Gen2
- Support maximum 240W（48V / 5A）according to PD3.1
- Reversible cable direction & plug orientation
- Supports DP Alt mode
Applications
- PC/NB
- Storage Devices
- Industrial Camera
- Medical Equipment
- Mobile Phone
- Game console
- Wearable devices
-
-
Specifications
USB Version Length OD AWG Emarker Power Delivery TID Cable Geometry Current Rating Speed USB4 Gen4 1.0m 5.0+/-0.2mm TPE #30 PD 3.1 240W 11708 Twist pair 5A 80G USB3.2 Gen2 1.0m 5.0+/-0.2mm PVC #31 PD 3.1 100W 5200000348 Twist pair 5A 10G / 20G USB3.2 Gen1 2.0m 5.0+/-0.2mm PVC #31 PD 3.1 100W 3570 Twist pair 5A PVC
