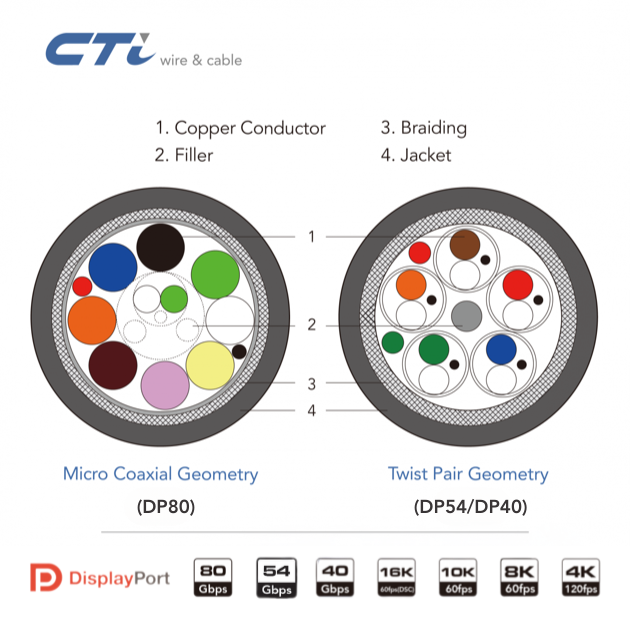

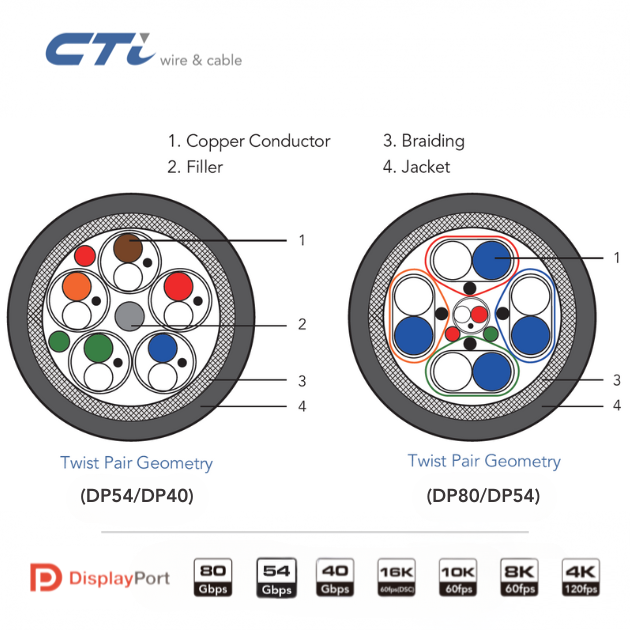

DisplayPort 2.1 has updated the DisplayPort cable specification to provide greater robustness and enhancements to full-size and Mini DisplayPort cable configurations that enable improved connectivity and longer cable lengths (beyond two meters for DP40 cables and beyond one meter for DP80 cables) without diminishing UHBR performance. VESA certified DP80 cables support up to the UHBR20 link rate (20 Gbps), with four lanes, providing a maximum throughput of 80 Gbps. VESA certified DP54 cables support up to the UHBR13.5 link rate (13.5 Gbps), with four lanes, providing a maximum throughput of 54 Gbps, while VESA certified DP40 cables support up to the UHBR10 link rate (10 Gbps), with four lanes, providing a maximum throughput of 40 Gbps.
-
DP2.1 DP80
DP2.1 DP54CTi Cable Code Connector AWG OD(mm) Length(m) DP000730CDW80 Enhanced FSDP(no Latch) 30 4.8+/-0.15 1 DP000730CMM80 Enhanced Mini DP 30 4.8+/-0.15 1 DP000730CWM80 Enhanced FSDP to Mini DP(no Latch) 30 4.8+/-0.15 1 DP000730CCW80 USB Type C to Enhanced FSDP(no Latch) 30 4.8+/-0.15 1 DP000726TDD80 Enhanced FSDP 26 6.5+/-0.15 1.5 / 2 DP000726TDW80 Enhanced FSDP(no Latch) 26 6.5+/-0.15 1.5 / 2
DP2.1 DP40CTi Cable Code Connector AWG OD(mm) Length(m) DP000726TDD54 Enhanced FSDP 26 6.5+/-0.15 3 DP000728TDD54 Enhanced FSDP 28 5.7+/-0.15 1 / 2 DP000728TCD54 USB Type C to Enhanced FSDP 28 5.7+/-0.15 1 / 2 CTi Cable Code Connector AWG OD(mm) Length(m) DP000726TDW40 Enhanced FSDP 26 6.5+/-0.15 3 DP000728TDD40 Enhanced FSDP 28 5.7+/-0.15 1 / 1.5 / 2 DP000728TDW40 Enhanced FSDP(no Latch) 28 5.7+/-0.15 1 / 1.5 / 2 DP000730TDW40 Enhanced FSDP(no Latch) 30 5+/-0.15 1 DP000730TCM40 USB Type C to Enhanced mini DP 30 5+/-0.15 2 -
Features
- World Slimmest VESA Certified DP80 Products

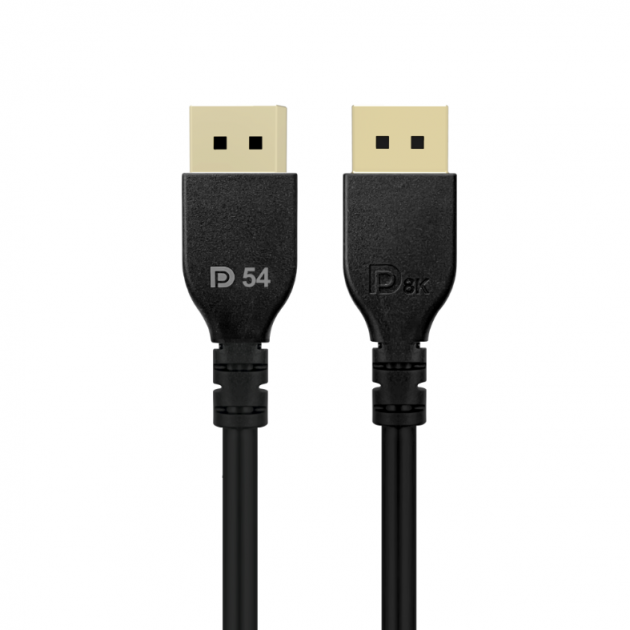

- Enhanced FSDP connector provides high transmission bit rate
- Supports UHBR20 (20Gbps x 4 Lanes), UHBR13.5 (13.5Gbps x 4
Lanes), UHBR10 (10Gbps x 4 Lanes) high speed data rate
- Supports resolution Max.16K60fps(DSC) and 10K60fps
- Cable ID supports SOP commands and captures the information of
the cable
- Robust shield design for extra EMI protection
- Short plug fixture for install friendlyApplications
-
- Graphic Cards
- Gaming Devices
- Industrial Equipment
- Medical Equipment
- Monitor
-
-
Product listDP2.1 DP80
DP2.1 DP54CTi Cable Code Connector AWG OD(mm) Length(m) DP000730CDW80 Enhanced FSDP(no Latch) 30 4.8+/-0.15 1 DP000730CMM80 Enhanced Mini DP 30 4.8+/-0.15 1 DP000730CWM80 Enhanced FSDP to Mini DP(no Latch) 30 4.8+/-0.15 1 DP000730CCW80 USB Type C to Enhanced FSDP(no Latch) 30 4.8+/-0.15 1 DP000726TDD80 Enhanced FSDP 26 6.5+/-0.15 1.5 / 2 DP000726TDW80 Enhanced FSDP(no Latch) 26 6.5+/-0.15 1.5 / 2
DP2.1 DP40CTi Cable Code Connector AWG OD(mm) Length(m) DP000726TDD54 Enhanced FSDP 26 6.5+/-0.15 3 DP000728TDD54 Enhanced FSDP 28 5.7+/-0.15 1 / 2 DP000728TCD54 USB Type C to Enhanced FSDP 28 5.7+/-0.15 1 / 2 CTi Cable Code Connector AWG OD(mm) Length(m) DP000726TDW40 Enhanced FSDP 26 6.5+/-0.15 3 DP000728TDD40 Enhanced FSDP 28 5.7+/-0.15 1 / 1.5 / 2 DP000728TDW40 Enhanced FSDP(no Latch) 28 5.7+/-0.15 1 / 1.5 / 2 DP000730TDW40 Enhanced FSDP(no Latch) 30 5+/-0.15 1 DP000730TCM40 USB Type C to Enhanced mini DP 30 5+/-0.15 2 -
Features & Applications
Features
- World Slimmest VESA Certified DP80 Products
- Enhanced FSDP connector provides high transmission bit rate
- Supports UHBR20 (20Gbps x 4 Lanes), UHBR13.5 (13.5Gbps x 4
Lanes), UHBR10 (10Gbps x 4 Lanes) high speed data rate
- Supports resolution Max.16K60fps(DSC) and 10K60fps
- Cable ID supports SOP commands and captures the information of
the cable
- Robust shield design for extra EMI protection
- Short plug fixture for install friendlyApplications
-
- Graphic Cards
- Gaming Devices
- Industrial Equipment
- Medical Equipment
- Monitor
-
