The Ultra High Speed HDMI® Cable length that JCE(Members of CTi Group) provided for certification is 5m, 10m, 15m, 20m. By featuring in-house designed World 1st Certified HDMI Cat.3 plugs paired with shielding case structure, as well as adapting all-automation patented production procedures and assembly techniques, JCE is able to ensure the cables’ reliability and high-frequency signal integrity. During the early stages of HDMI 2.1b development, JCE, as a member from HDMI Forum, has also been proactive in the technical discussions and showed aggressiveness in their product planning, resulting in the fruitful outcome of being able to obtained both passive and active UHS cable certification.
-
Swipe for more informationCTi Cable Code AWG OD(mm) Length(m)
Connector Housing Data Sheet No. HD000505TAA na 3.0+/-0.15 5 A-A PVC Molding HD0005 HD000510TAA na 5.5 +/-0.15 10 PC Case + PVC HD000515TAA na 5.5 +/-0.15 15 HD000520TAA na 8.2 +/-0.15 20 -
Features
-
- Available in lengths of 5m, 10m, 15m and 20m.
- Supports higher video resolutions and faster refresh rates including 8K60Hz and 4K120Hz.
- Supports Dynamic HDR.
- Ultra High Speed HDMI Cable supports 48Gbps bandwidth.
- eARC simplifies connectivity and supports most advanced audio formats and quality.
- Enhanced gaming and media features ( VRR / QMS / QFT / ALLM ).
- Supports 10K resolutions for commercial AV and specialty usages.
- HDMI2.1b Specification is backward compatible with earlier versions.

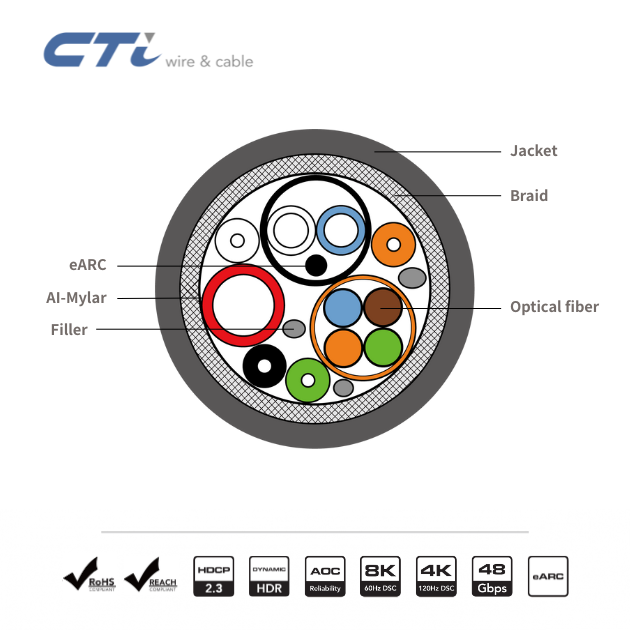

- Coaxial geometry offers greater EMI, flexibility & cross talk characteristics compared to twist pair geometry.
Applications
-
- Graphic Cards
- Gaming Devices
- Projector、Monitor、TV
- Industrial Equipment
- Medical Equipment
-
-
SpecificationsSwipe for more information
CTi Cable Code AWG OD(mm) Length(m)
Connector Housing Data Sheet No. HD000505TAA na 3.0+/-0.15 5 A-A PVC Molding HD0005 HD000510TAA na 5.5 +/-0.15 10 PC Case + PVC HD000515TAA na 5.5 +/-0.15 15 HD000520TAA na 8.2 +/-0.15 20 -
Features & Applications
Features
-
- Available in lengths of 5m, 10m, 15m and 20m.
- Supports higher video resolutions and faster refresh rates including 8K60Hz and 4K120Hz.
- Supports Dynamic HDR.
- Ultra High Speed HDMI Cable supports 48Gbps bandwidth.
- eARC simplifies connectivity and supports most advanced audio formats and quality.
- Enhanced gaming and media features ( VRR / QMS / QFT / ALLM ).
- Supports 10K resolutions for commercial AV and specialty usages.
- HDMI2.1b Specification is backward compatible with earlier versions.
- Coaxial geometry offers greater EMI, flexibility & cross talk characteristics compared to twist pair geometry.
Applications
-
- Graphic Cards
- Gaming Devices
- Projector、Monitor、TV
- Industrial Equipment
- Medical Equipment
-
