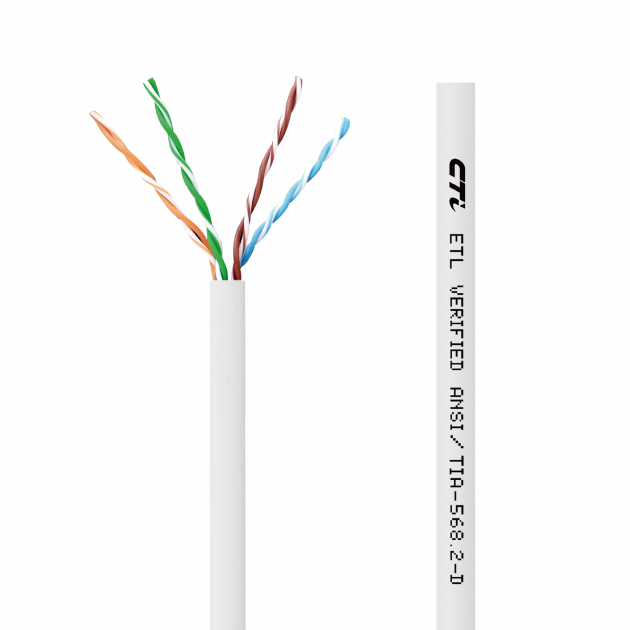

With the U/UTP Cat.6 CPR level LAN cable series, 23AWG with different flame retardant from UL 444 CMP-CMR.
Transmit data rate up to 1Gbps. Suitable for common telecommunication application.
-
Swipe for more informationCTi Cable Code Standard Conductor AWG OD(mm) Outer Jacket
Flame Retardant
Packaging
GBL2016
ISO/TIA
Solid 23 5.8+/-0.5
FRPVC UL 444 CMR
Reel in box (305m)
Un-reel box (305m)
Wooden drum (500m)
GBL2017*
ISO/TIA
Solid 23 5.0+/-0.5
FRPVC UL 444 CMP
GBL2028
ISO/TIA
Solid 23 5.7+/-0.5
FRPVC UL 444 CMR
*note: With rip cord design
-
Features
-
- Flame tested to UL444 CMP / CMR
- Transmission tested to 250MHz, according to ANSI/TIA 568.2-D and ISO11801 Cat.6 standard
- POE++ tested to IEEE 802.3bt 100W, Bundle size 37 pcs
Applications
-
-10BASE-T Ethernet
-100BASE-T (Fast Ethernet)
-1000BASE-T (Gigabit Ethernet)
-
-
SpecificationsSwipe for more information
CTi Cable Code Standard Conductor AWG OD(mm) Outer Jacket
Flame Retardant
Packaging
GBL2016
ISO/TIA
Solid 23 5.8+/-0.5
FRPVC UL 444 CMR
Reel in box (305m)
Un-reel box (305m)
Wooden drum (500m)
GBL2017*
ISO/TIA
Solid 23 5.0+/-0.5
FRPVC UL 444 CMP
GBL2028
ISO/TIA
Solid 23 5.7+/-0.5
FRPVC UL 444 CMR
*note: With rip cord design
-
Features & Applications
Features
-
- Flame tested to UL444 CMP / CMR
- Transmission tested to 250MHz, according to ANSI/TIA 568.2-D and ISO11801 Cat.6 standard
- POE++ tested to IEEE 802.3bt 100W, Bundle size 37 pcs
Applications
-
-10BASE-T Ethernet
-100BASE-T (Fast Ethernet)
-1000BASE-T (Gigabit Ethernet)
-
