With the S/FTP Cat.6 CPR level LAN cable series, 23AWG with different flame retardant from EN50399 CPR Dca-Eca(Testing with CTi own CPR Lab by FTT) and IEC 60332-1
Transmit data rate up to 10Gbps with double shielding efficiency for RFI/EMI protection. Suitable for common telecommunication application.
-
Swipe for more informationCTi Cable Code Standard Conductor AWG OD(mm) Outer Jacket
Flame Retardant
Packaging
GBC2020
ISO Solid 23 7.1+/-0.5 PVC IEC 60332-1
Drum(500m)
GBC2038
TIA Solid 23 7.2+/-0.5 PVC IEC 60332-1
GBC2024 ISO Solid 23 6.8+/-0.5 LSZH IEC 60332-1 / EN50399 Eca GBC2039 TIA Solid 23 7.2+/-0.5 LSZH IEC 60332-1 GBC2025 ISO Solid 23 6.8+/-0.5 LSZH EN50399
Dca, s2, d2, a1GBC2040 TIA Solid 23 7.2+/-0.5 LSZH EN50399
Dca, s2, d2, a1GBC2015 TIA Solid 23 7.3+/-0.5 PUR IEC 60332-1 GBC2043 TIA Solid 23 7.3+/-0.5 PE - -
Features
-
- Flame tested to EN50399 Dca / Eca
- Flame tested to IEC 60332-1
- Transmission tested to 250MHz, according to ANSI/TIA-568.2-D, IEC 61156-5 Cat.6 standard

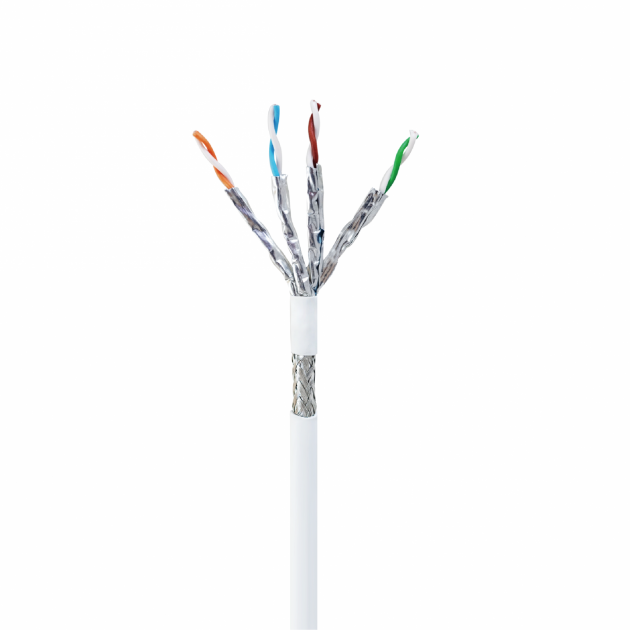

- Overall braided screen with single pair covered by aluminum mylar have superior structural integrity and physical protection with higher flex life, provide greater shielding efficiency for RFI/EMI.
- POE++ tested to IEEE 802.3bt 100W, Bundle size 37 pcs
Applications
-
-10BASE-T Ethernet
-100BASE-T (Fast Ethernet)
-1000BASE-T (Gigabit Ethernet)
-
-
SpecificationsSwipe for more information
CTi Cable Code Standard Conductor AWG OD(mm) Outer Jacket
Flame Retardant
Packaging
GBC2020
ISO Solid 23 7.1+/-0.5 PVC IEC 60332-1
Drum(500m)
GBC2038
TIA Solid 23 7.2+/-0.5 PVC IEC 60332-1
GBC2024 ISO Solid 23 6.8+/-0.5 LSZH IEC 60332-1 / EN50399 Eca GBC2039 TIA Solid 23 7.2+/-0.5 LSZH IEC 60332-1 GBC2025 ISO Solid 23 6.8+/-0.5 LSZH EN50399
Dca, s2, d2, a1GBC2040 TIA Solid 23 7.2+/-0.5 LSZH EN50399
Dca, s2, d2, a1GBC2015 TIA Solid 23 7.3+/-0.5 PUR IEC 60332-1 GBC2043 TIA Solid 23 7.3+/-0.5 PE - -
Features & Applications
Features
-
- Flame tested to EN50399 Dca / Eca
- Flame tested to IEC 60332-1
- Transmission tested to 250MHz, according to ANSI/TIA-568.2-D, IEC 61156-5 Cat.6 standard
- Overall braided screen with single pair covered by aluminum mylar have superior structural integrity and physical protection with higher flex life, provide greater shielding efficiency for RFI/EMI.
- POE++ tested to IEEE 802.3bt 100W, Bundle size 37 pcs
Applications
-
-10BASE-T Ethernet
-100BASE-T (Fast Ethernet)
-1000BASE-T (Gigabit Ethernet)
-
