Recently USB-IF released the specification for EPR (Enhanced Power Range) and SPR (Standard Power Range). USB4 EPR cables can support up to 240 watts of power, while SPR cables can support 60 watts. You may ask, what about 100W cables? The answer is that USB-IF has cancelled 100W cable certification services, meaning that future USB4 cables will only be categorized into EPR and SPR cables, but 100W cables already certified can still use their originally obtained USB-IF logos in the future.
-
Swipe for more information
CTi Cable Code AWG OD(mm) Length(m)

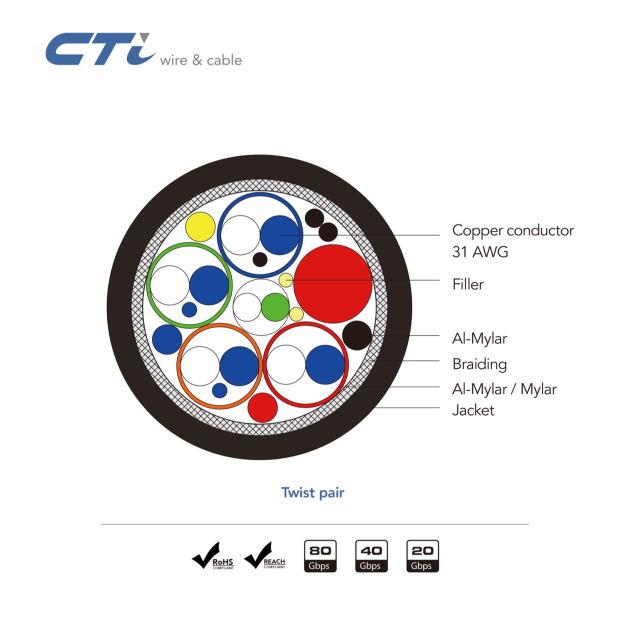

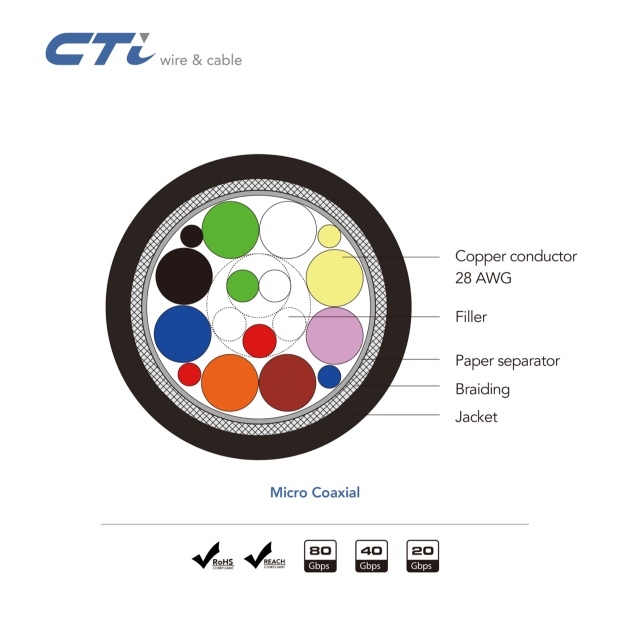

Connector Housing Transfer Mode Data Sheet No. US000528CCC40E (EPR 240W) 28 5.2+/-0.15 1.2 C-C PVC Molding Gen3 US0005 US000531TCC20E (Twist Pair, EPR 240W) 31 5+/-0.15 2 Gen3 US000528CCC40 28 5.2+/-0.15 1 / 2 Gen3 US000530CCC40 30 4.8+/-0.15 0.8 Gen3 US000528CCC20 28 5.3+/-0.15 3 Gen2 US000531TCC20 (Twist Pair) 31 5+/-0.15 2 Gen2 -
Features
-
- USB-IF Certified
- Data rate up to 40Gbps for Gen3, 20Gbps for Gen2
- Support maximum 240W / 48V / 5A according to PD3.1
- Longest certified for USB4 Gen2 3m, Gen3 1.2m
- Slimmest certified for USB4 Gen3, OD: 4.8mm
- Reversible cable direction & plug orientation
Applications
-
- PC/NB
- Storage Devices
- Industrial Camera
- Medical Equipment
- Mobile Phone
- Game console
- Wearable devices
-
-
SpecificationsSwipe for more information
CTi Cable Code AWG OD(mm) Length(m)
Connector Housing Transfer Mode Data Sheet No. US000528CCC40E (EPR 240W) 28 5.2+/-0.15 1.2 C-C PVC Molding Gen3 US0005 US000531TCC20E (Twist Pair, EPR 240W) 31 5+/-0.15 2 Gen3 US000528CCC40 28 5.2+/-0.15 1 / 2 Gen3 US000530CCC40 30 4.8+/-0.15 0.8 Gen3 US000528CCC20 28 5.3+/-0.15 3 Gen2 US000531TCC20 (Twist Pair) 31 5+/-0.15 2 Gen2 -
Features & Applications
Features
-
- USB-IF Certified
- Data rate up to 40Gbps for Gen3, 20Gbps for Gen2
- Support maximum 240W / 48V / 5A according to PD3.1
- Longest certified for USB4 Gen2 3m, Gen3 1.2m
- Slimmest certified for USB4 Gen3, OD: 4.8mm
- Reversible cable direction & plug orientation
Applications
-
- PC/NB
- Storage Devices
- Industrial Camera
- Medical Equipment
- Mobile Phone
- Game console
- Wearable devices
-
