The Ultra High Speed HDMI® Cable length that JCE(Members of CTi Group) provided for certification is 9m (24AWG) and 0.5m (38AWG) in length. By featuring in-house designed World 1st Certified HDMI Cat.3 plugs paired with shielding case structure, as well as adapting all-automation patented production procedures and assembly techniques, JCE is able to ensure the cables’ reliability and high-frequency signal integrity. During the early stages of HDMI 2.1 development, JCE, as a member from HDMI Forum, has also been proactive in the technical discussions and showed aggressiveness in their product planning, resulting in the fruitful outcome of being able to obtained both passive and active UHS cable certification.
-
Swipe for more informationCTi Cable Code AWG OD(mm) Length(m)
Connector Housing Data Sheet No. HD000324TAA 24 9 +/-0.15 7 / 9 A-A PC Case + PVC HD0003 HD000326TAA 26 8 +/-0.15 4 / 5 PVC Molding HD000328TAA 28 6.7 +/-0.15 3 PVC Molding HD000330TAA 30 6 +/-0.15 0.5 / 0.6 / 0.75 / 1 / 1.5 / 2 / 2.25 / 3 PVC Molding HD000330CAA (Coaxial) 30 5.5 +/-0.15 0.5 / 1 / 1.5 / 2 / 2.5 / 3 PVC Molding HD000330FAA 30 3.5+/-0.2*11.9+/-0.3 1 / 2 / 3 PVC Molding HD000334TAA 34 4.5 +/-0.15 0.5 / 1 / 1.5 / 2 PVC Molding HD000336TAA 36 3.2 +/-0.15 1 / 1.5 PVC Molding HD000338TAA 38 2.8 +/-0.15 0.5 / 1 PC Case -
Features
-
- World longest & Slimmest
- Supports higher video resolutions and faster refresh rates including 8K60Hz and 4K120Hz.
- Supports Dynamic HDR.
- Ultra High Speed HDMI Cable supports 48Gbps bandwidth.
- eARC simplifies connectivity and supports most advanced audio formats and quality.
- Enhanced gaming and media features ( VRR / QMS / QFT / ALLM ).
- Supports 10K resolutions for commercial AV and specialty usages.
- HDMI2.1b Specification is backward compatible with earlier versions.

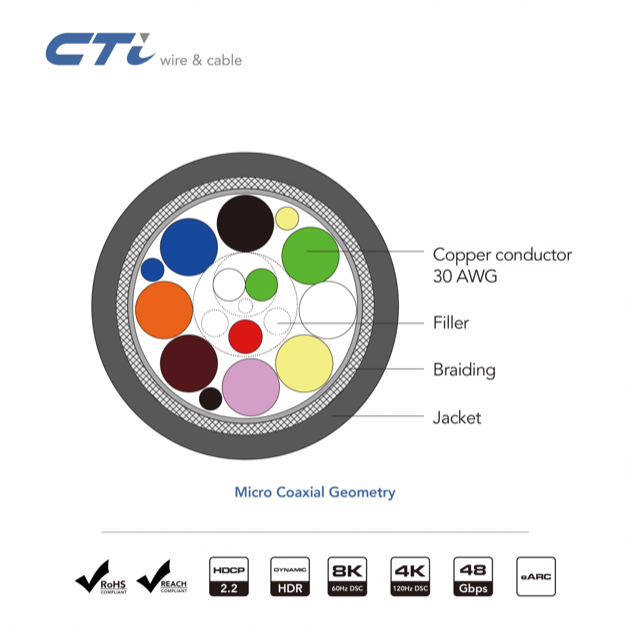

- Coaxial geometry offers greater EMI, flexibility & cross talk characteristics compared to twist pair geometry.
Applications
-
- Graphic Cards
- Gaming Devices
- Projector、Monitor、TV
- Industrial Equipment
- Medical Equipment
-
-
SpecificationsSwipe for more information
CTi Cable Code AWG OD(mm) Length(m)
Connector Housing Data Sheet No. HD000324TAA 24 9 +/-0.15 7 / 9 A-A PC Case + PVC HD0003 HD000326TAA 26 8 +/-0.15 4 / 5 PVC Molding HD000328TAA 28 6.7 +/-0.15 3 PVC Molding HD000330TAA 30 6 +/-0.15 0.5 / 0.6 / 0.75 / 1 / 1.5 / 2 / 2.25 / 3 PVC Molding HD000330CAA (Coaxial) 30 5.5 +/-0.15 0.5 / 1 / 1.5 / 2 / 2.5 / 3 PVC Molding HD000330FAA 30 3.5+/-0.2*11.9+/-0.3 1 / 2 / 3 PVC Molding HD000334TAA 34 4.5 +/-0.15 0.5 / 1 / 1.5 / 2 PVC Molding HD000336TAA 36 3.2 +/-0.15 1 / 1.5 PVC Molding HD000338TAA 38 2.8 +/-0.15 0.5 / 1 PC Case -
Features & Applications
Features
-
- World longest & Slimmest
- Supports higher video resolutions and faster refresh rates including 8K60Hz and 4K120Hz.
- Supports Dynamic HDR.
- Ultra High Speed HDMI Cable supports 48Gbps bandwidth.
- eARC simplifies connectivity and supports most advanced audio formats and quality.
- Enhanced gaming and media features ( VRR / QMS / QFT / ALLM ).
- Supports 10K resolutions for commercial AV and specialty usages.
- HDMI2.1b Specification is backward compatible with earlier versions.
- Coaxial geometry offers greater EMI, flexibility & cross talk characteristics compared to twist pair geometry.
Applications
-
- Graphic Cards
- Gaming Devices
- Projector、Monitor、TV
- Industrial Equipment
- Medical Equipment
-
