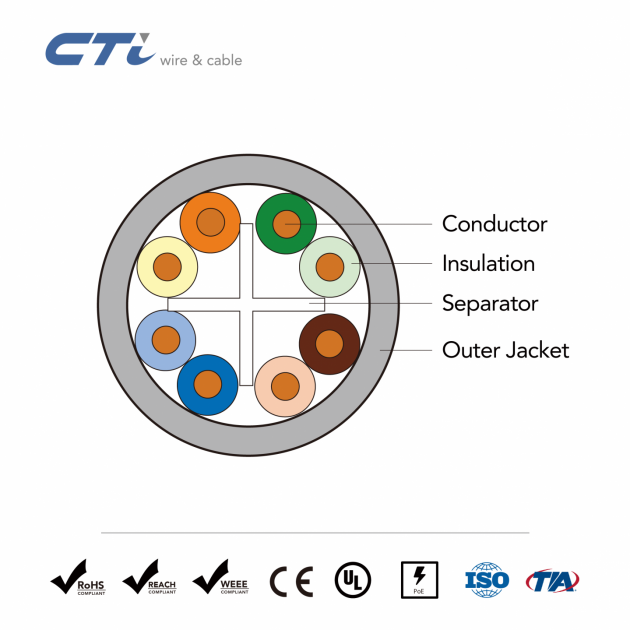

With the U/UTP Cat.6 CPR level LAN cable series, 23AWG with different flame retardant from EN50399 CPR Cca-Dca(Testing with CTi own CPR Lab by FTT) and UL 444 CMP-CMX.
24AWG with different flame retardant from EN50399 CPR B2ca-Eca and UL444 CM. Transmit data rate up to 1Gbps. Suitable for common telecommunication application.
-
*note: With rip cord design
Swipe for more informationCTi Cable Code Standard Conductor AWG OD(mm) Outer Jacket
Flame Retardant
Packaging
GBL2005***
ISO/TIA
Solid
23
5.7 +/-0.5
PVC
IEC 60332-1
Reel in box (305m)
Un-reel box (305m)
Wooden drum (500m)
GBL2002***
ISO/TIA
Solid
23
5.8 +/-0.5
PVC
UL 444 CMG
GBL2001
ISO/TIA
Solid
23
5.7 +/-0.5
FRPVC
UL444 CM
GBL2003
ISO/TIA
Solid
23
5.9+/-0.5
FRPVC
UL444 CMR
GBL2004*
TIA
Solid
23
5.3 +/-0.5
FRPVC
UL 444 CMP
GBL2009***
ISO/TIA
Solid
23
5.7 +/-0.5
LSZH
IEC 60332-1/EN50399 Eca
GBL2010***
ISO/TIA
Solid
23
5.7 +/-0.5
LSZH
EN50399 Dca, s2, d2, a1
GBL2011
ISO/TIA
Solid
23
6.0 +/-0.5
FRLSZH
EN50399 Cca, s1, d1, a1
GBL2012 ISO/TIA Solid 23 6.0 +/-0.5 FRLSZH EN50399 B2ca GBL2013
ISO/TIA
Solid
23
6.0 +/-0.5
PE
-
GAR2001
ISO/TIA
Solid
24
5.7 +/-0.5
FRPVC
UL 444 CM
GAR2003 ISO/TIA Solid 24 5.7 +/-0.5 FRPVC UL 444 CMR GAR2005
ISO/TIA
Solid
24
5.4 +/-0.5
PVC
IEC 60332-1
GAR2009
ISO/TIA
Solid
24
5.4 +/-0.5
LSZH
IEC 60332-1/EN50399 Eca
GAR2010
ISO/TIA
Solid
24
5.4 +/-0.5
LSZH
EN50399 Dca, s2, d2, a1
GAR2011
ISO/TIA
Solid
24
5.8 +/-0.5
FRLSZH
EN50399 Cca, s1, d1, a1
GAR2012
ISO/TIA
Solid
24
5.8 +/-0.5
FRLSZH
EN50399 B2ca, s1, d1, a1
GAR2027**
TIA
Solid
24
6.3 +/-0.5
PE
-
**note: Water resistant design, the test value is measured under CTI's test condition and methods, not a guaranteed value.
***note: AVoIP supported -
Features
-
- Flame tested to UL444 CMP / CMR / CM / CMX
- Flame tested to EN50399 B2ca / Cca / Dca / Eca
- Flame tested to IEC 60332-1
- Transmission tested to 250MHz, according to ANSI/TIA 568.2-D, IEC 61156-5 Cat.6 standard
- POE++ tested to IEEE 802.3bt 100W, Bundle size 37 pcs
Applications
-
-10BASE-T Ethernet
-100BASE-T (Fast Ethernet)
-1000BASE-T (Gigabit Ethernet)
-
-
Specifications*note: With rip cord designSwipe for more information
CTi Cable Code Standard Conductor AWG OD(mm) Outer Jacket
Flame Retardant
Packaging
GBL2005***
ISO/TIA
Solid
23
5.7 +/-0.5
PVC
IEC 60332-1
Reel in box (305m)
Un-reel box (305m)
Wooden drum (500m)
GBL2002***
ISO/TIA
Solid
23
5.8 +/-0.5
PVC
UL 444 CMG
GBL2001
ISO/TIA
Solid
23
5.7 +/-0.5
FRPVC
UL444 CM
GBL2003
ISO/TIA
Solid
23
5.9+/-0.5
FRPVC
UL444 CMR
GBL2004*
TIA
Solid
23
5.3 +/-0.5
FRPVC
UL 444 CMP
GBL2009***
ISO/TIA
Solid
23
5.7 +/-0.5
LSZH
IEC 60332-1/EN50399 Eca
GBL2010***
ISO/TIA
Solid
23
5.7 +/-0.5
LSZH
EN50399 Dca, s2, d2, a1
GBL2011
ISO/TIA
Solid
23
6.0 +/-0.5
FRLSZH
EN50399 Cca, s1, d1, a1
GBL2012 ISO/TIA Solid 23 6.0 +/-0.5 FRLSZH EN50399 B2ca GBL2013
ISO/TIA
Solid
23
6.0 +/-0.5
PE
-
GAR2001
ISO/TIA
Solid
24
5.7 +/-0.5
FRPVC
UL 444 CM
GAR2003 ISO/TIA Solid 24 5.7 +/-0.5 FRPVC UL 444 CMR GAR2005
ISO/TIA
Solid
24
5.4 +/-0.5
PVC
IEC 60332-1
GAR2009
ISO/TIA
Solid
24
5.4 +/-0.5
LSZH
IEC 60332-1/EN50399 Eca
GAR2010
ISO/TIA
Solid
24
5.4 +/-0.5
LSZH
EN50399 Dca, s2, d2, a1
GAR2011
ISO/TIA
Solid
24
5.8 +/-0.5
FRLSZH
EN50399 Cca, s1, d1, a1
GAR2012
ISO/TIA
Solid
24
5.8 +/-0.5
FRLSZH
EN50399 B2ca, s1, d1, a1
GAR2027**
TIA
Solid
24
6.3 +/-0.5
PE
-
**note: Water resistant design, the test value is measured under CTI's test condition and methods, not a guaranteed value.
***note: AVoIP supported -
Features & Applications
Features
-
- Flame tested to UL444 CMP / CMR / CM / CMX
- Flame tested to EN50399 B2ca / Cca / Dca / Eca
- Flame tested to IEC 60332-1
- Transmission tested to 250MHz, according to ANSI/TIA 568.2-D, IEC 61156-5 Cat.6 standard
- POE++ tested to IEEE 802.3bt 100W, Bundle size 37 pcs
Applications
-
-10BASE-T Ethernet
-100BASE-T (Fast Ethernet)
-1000BASE-T (Gigabit Ethernet)
-
