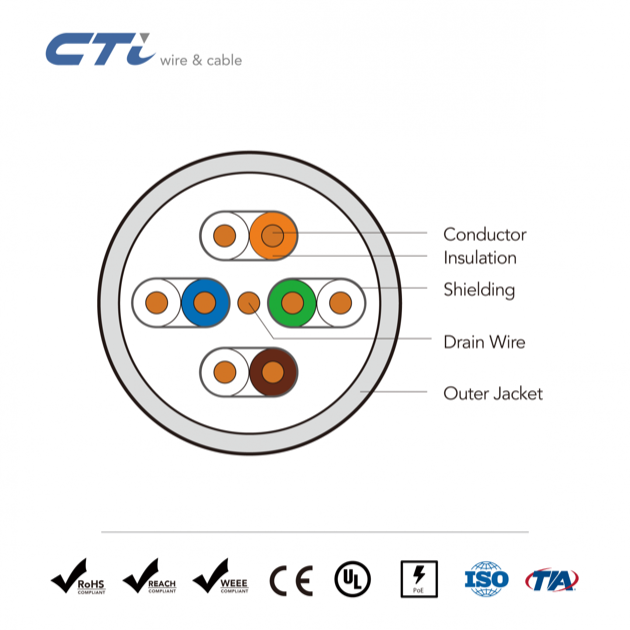

With the U/FTP Cat.6A CPR level LAN cable series, 23AWG with different flame retardant from EN50399 CPR B2ca-Eca(Testing with CTi own CPR Lab by FTT) and UL 444 CM.
Transmit data rate up to 10Gbps with single pair aluminum mylar cover which Improved shielding efficiency and increased heat dissipation. Suitable for common telecommunication and New HDBaseT 3.0 application.
-
Swipe for more informationCTi Cable Code Standard Conductor AWG
OD(mm) Outer Jacket
Flame Retardant
Packaging
GBK2001
ISO
Solid
23
6.6 +/- 0.5
PVC
UL444 CM
Drum(500m)
GBK2005
ISO
6.4 +/- 0.5
PVC
IEC 60332-1
GBK2044
TIA
7.2 +/- 0.5
PVC
IEC 60332-1
GBK2009
ISO
6.4 +/- 0.5
LSZH
IEC 60332-1 / EN50399 Eca
GBK2045
TIA
7.2 +/- 0.5
LSZH
IEC 60332-1
GBK2010
ISO
6.4 +/- 0.5
LSZH
EN50399
Dca, s2, d2, a1
GBK2011
ISO
6.7 +/- 0.5
FRLSZH
EN50399
Cca, s1, d1, a1
GBK2012 ISO 6.7 +/- 0.5 FRLSZH EN50399
B2ca, s1, d1, a1
GBK2050
TIA
HDBT 3.07.3 +/- 0.5 PVC
IEC 60332-1 GBK2049 TIA
HDBT 3.07.2 +/- 0.5 LSZH
IEC 60332-1 -
Features
-
- Flame tested to EN50399 B2ca / Cca / Dca / Eca
- Flame tested to CM
- Flame tested to IEC 60332-1
- Transmission tested to 500MHz, according to ISO 11801 class EA, ANSI/TIA-568.2-D and IEC 61156-5 Cat.6A standard
- Improved shielding efficiency and increased heat dissipation
- POE++ tested to IEEE 802.3bt 100W, Bundle size 37 pcs
- HDBaseT spec 3.0 Premium Certified
Applications
-
-10BASE-T Ethernet
-100BASE-T (Fast Ethernet)
-1000BASE-T (Gigabit Ethernet)
-10GBASE-T (10 Gigabit Ethernet)
-
-
SpecificationsSwipe for more information
CTi Cable Code Standard Conductor AWG
OD(mm) Outer Jacket
Flame Retardant
Packaging
GBK2001
ISO
Solid
23
6.6 +/- 0.5
PVC
UL444 CM
Drum(500m)
GBK2005
ISO
6.4 +/- 0.5
PVC
IEC 60332-1
GBK2044
TIA
7.2 +/- 0.5
PVC
IEC 60332-1
GBK2009
ISO
6.4 +/- 0.5
LSZH
IEC 60332-1 / EN50399 Eca
GBK2045
TIA
7.2 +/- 0.5
LSZH
IEC 60332-1
GBK2010
ISO
6.4 +/- 0.5
LSZH
EN50399
Dca, s2, d2, a1
GBK2011
ISO
6.7 +/- 0.5
FRLSZH
EN50399
Cca, s1, d1, a1
GBK2012 ISO 6.7 +/- 0.5 FRLSZH EN50399
B2ca, s1, d1, a1
GBK2050
TIA
HDBT 3.07.3 +/- 0.5 PVC
IEC 60332-1 GBK2049 TIA
HDBT 3.07.2 +/- 0.5 LSZH
IEC 60332-1 -
Features & Applications
Features
-
- Flame tested to EN50399 B2ca / Cca / Dca / Eca
- Flame tested to CM
- Flame tested to IEC 60332-1
- Transmission tested to 500MHz, according to ISO 11801 class EA, ANSI/TIA-568.2-D and IEC 61156-5 Cat.6A standard
- Improved shielding efficiency and increased heat dissipation
- POE++ tested to IEEE 802.3bt 100W, Bundle size 37 pcs
- HDBaseT spec 3.0 Premium Certified
Applications
-
-10BASE-T Ethernet
-100BASE-T (Fast Ethernet)
-1000BASE-T (Gigabit Ethernet)
-10GBASE-T (10 Gigabit Ethernet)
-
