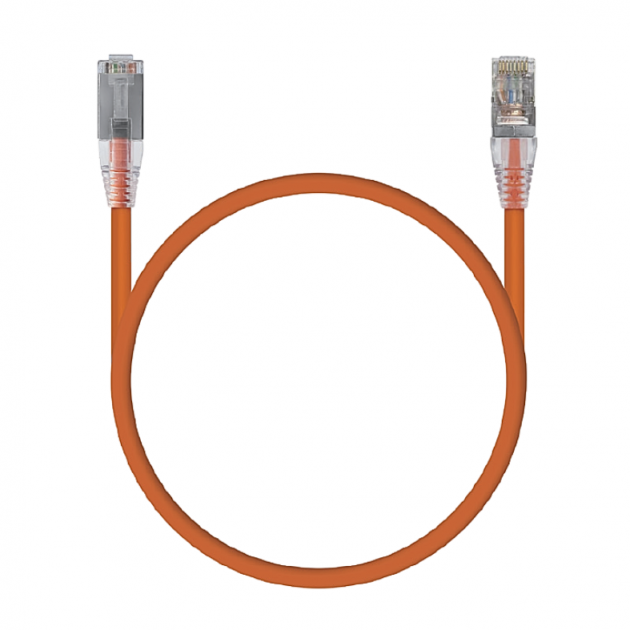

The Cat.8 Ethernet cable is engineered for ultra-high-speed data transmission, certified to meet TIA Cat.8 and ISO11801 Cat.8 Class I standards. With a tested transmission bandwidth of 2000MHz, it supports 25GBASE-T and 40GBASE-T applications, making it ideal for the most demanding networking environments, including data centers and high-speed Wi-Fi distribution.
-
Swipe for more information
CTi Cable Code Connector Type AWG OD(mm) OD(in) Outer Jacket
Length(m) Standard
CTi's Declaration LAC9004 Assembly 26 5.4+/-0.3 0.22+/-0.01" LSZH(IEC 60332-1)2 TIA/ISO Channel TIA/ISO Channel -
Features
- - TIA Cat.8 channel and ISO11801 Cat.8 Class I Channel Certification
- - Channel Configurations ( Cord / Horizontal cable / Cord )
Long Channel: 2 m / 26m / 2 m
Short Channel: 2 m / 5 m / 2 m- - Cat.8 tested to 2000MHz transmission bandwidth, 25GBASE-T and 40GBASE-T applications
- - Fully backward compatible with all the previous(Cat.5e, Cat.6, Cat.6A) RJ45 cabling and equipment
- - S/FTP construction, braiding and AL-Mylar shielding provides greater protection from each pairs and other cables, RFI and EMI
Applications
-
- 10 / 100 / 1G / 10G / 25G / 40G Base-T (IEEE 802.3 i / u / ab / an / bq)
- PoE (IEEE802.3af), PoE+ (IEEE802.3at), PoE++ (IEEE802.3bt Type 3 & 4)
- Data Centre Networking & Wi-Fi Distribution
-
SpecificationsSwipe for more information
CTi Cable Code Connector Type AWG OD(mm) OD(in) Outer Jacket
Length(m) Standard
CTi's Declaration LAC9004 Assembly 26 5.4+/-0.3 0.22+/-0.01" LSZH(IEC 60332-1)2 TIA/ISO Channel TIA/ISO Channel -
Features & Applications
Features
- - TIA Cat.8 channel and ISO11801 Cat.8 Class I Channel Certification
- - Channel Configurations ( Cord / Horizontal cable / Cord )
Long Channel: 2 m / 26m / 2 m
Short Channel: 2 m / 5 m / 2 m- - Cat.8 tested to 2000MHz transmission bandwidth, 25GBASE-T and 40GBASE-T applications
- - Fully backward compatible with all the previous(Cat.5e, Cat.6, Cat.6A) RJ45 cabling and equipment
- - S/FTP construction, braiding and AL-Mylar shielding provides greater protection from each pairs and other cables, RFI and EMI
Applications
-
- 10 / 100 / 1G / 10G / 25G / 40G Base-T (IEEE 802.3 i / u / ab / an / bq)
- PoE (IEEE802.3af), PoE+ (IEEE802.3at), PoE++ (IEEE802.3bt Type 3 & 4)
- Data Centre Networking & Wi-Fi Distribution
