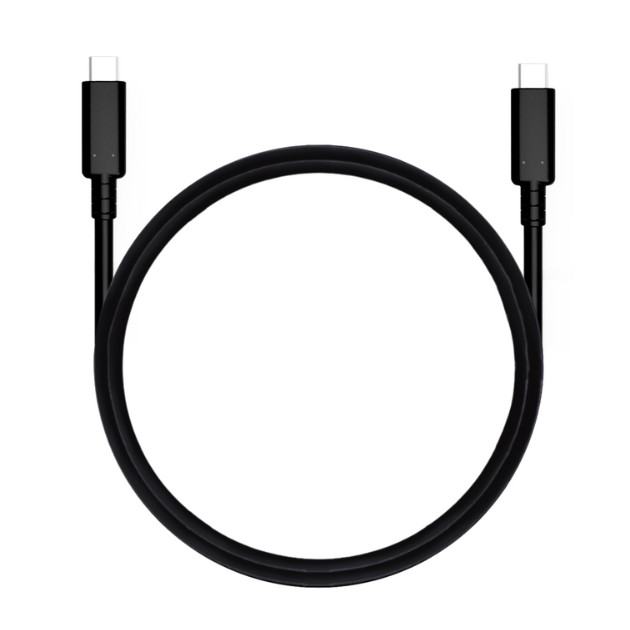

High Flex USB 3.2 Cable
Description：
High Flex USB 3.2 cables are designed for continuous bending and movement, making them ideal for medical devices, motion-controlled systems, where frequent bending and twisting occur. Additionally, they are well-suited for consumer electronics such as gaming peripherals, VR headsets, and portable SSDs, where durability and flexibility are essential for long-term performance. High Flex USB 3.2 cables provide seamless connectivity without compromising speed or reliability.
Download file
-
Features
-
- USB 3.2 Gen1 2m cable
- Data rate 5Gbps
- Support maximum 60W（20V/3A）
- Durable cable capable of passing at least 5000 cycles of
reverse bending test.
- For Portable Data Storage, Industrial Control, and
Automated Optical Inspection application
Applications
-
- Portable Storage Devices
-
- Industrial camera
-
- Medical Equipments
- - AOI
-
-
*This test value is measured under CTi’s test condition and methods, not a guaranteed value.CTi Cable Code AWG OD(mm) Length(m) Connector Housing Transfer Mode Cycles Data Sheet No. US001032TCC 32 4.8+/-0.2 2 C-C PVC Molding Gen1 5000* US0010
-
Features & Applications
Features
-
- USB 3.2 Gen1 2m cable
- Data rate 5Gbps
- Support maximum 60W（20V/3A）
- Durable cable capable of passing at least 5000 cycles of
reverse bending test.
- For Portable Data Storage, Industrial Control, and
Automated Optical Inspection application
Applications
-
- Portable Storage Devices
-
- Industrial camera
-
- Medical Equipments
- - AOI
-
-

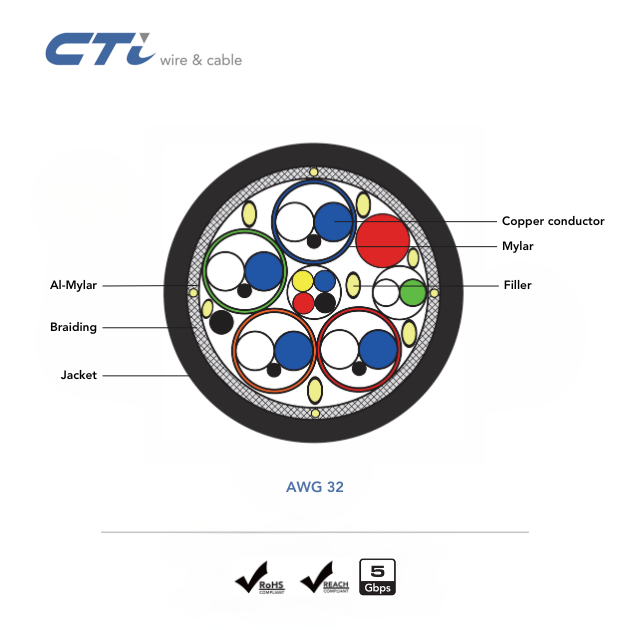

Specifications
*This test value is measured under CTi’s test condition and methods, not a guaranteed value.CTi Cable Code AWG OD(mm) Length(m) Connector Housing Transfer Mode Cycles Data Sheet No. US001032TCC 32 4.8+/-0.2 2 C-C PVC Molding Gen1 5000* US0010
