With the U/FTP Cat.6 CPR level LAN cable series, 23AWG with different flame retardant for EN50399 CPR Eca(Testing with CTi own CPR Lab by FTT) and UL 444 CM.
Transmit data rate up to 1Gbps with single pair aluminum mylar cover which Improved shielding efficiency and increased heat dissipation. Suitable for common telecommunication application.
-
Swipe for more informationCTi Cable Code Standard Conductor AWG OD(mm) Outer Jacket
Flame Retardant
Packaging
GBC2001
ISO Solid 23 6.6+/-1 FRPVC UL 444 CM Drum(500m)
GBC2009
ISO Solid 23 6.4+/-1 LSZH EN50399 Eca / IEC 60332-1
Drum(500m)
-
Features
-
- Flame tested to EN50399 Dca / Eca
- Flame tested to IEC 60332-1
- Transmission tested to 250MHz, according to ANSI/TIA-568.2-D, IEC 61156-5 Cat.6 standard

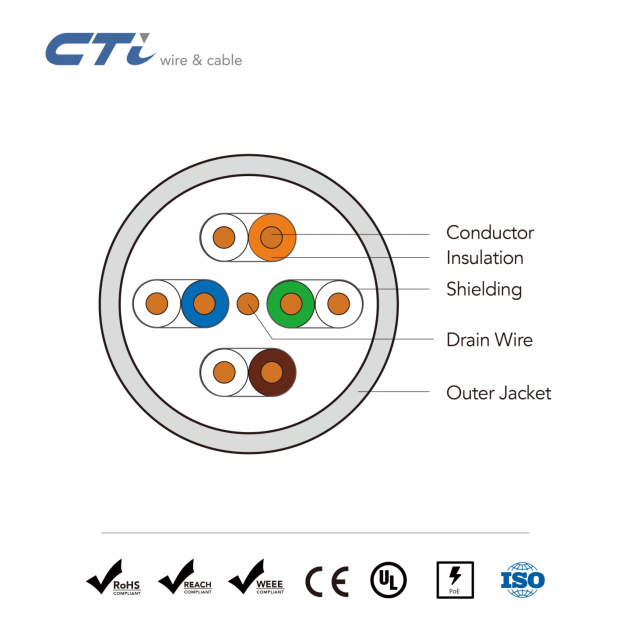

- Overall braided screen with single pair covered by aluminum mylar have superior structural integrity and physical protection with higher flex life, provide greater shielding efficiency for RFI/EMI.
- POE++ tested to IEEE 802.3bt 100W, Bundle size 37 pcs
Applications
-
-10BASE-T Ethernet
-100BASE-T (Fast Ethernet)
-1000BASE-T (Gigabit Ethernet)
-
-
SpecificationsSwipe for more information
CTi Cable Code Standard Conductor AWG OD(mm) Outer Jacket
Flame Retardant
Packaging
GBC2001
ISO Solid 23 6.6+/-1 FRPVC UL 444 CM Drum(500m)
GBC2009
ISO Solid 23 6.4+/-1 LSZH EN50399 Eca / IEC 60332-1
Drum(500m)
-
Features & Applications
Features
-
- Flame tested to EN50399 Dca / Eca
- Flame tested to IEC 60332-1
- Transmission tested to 250MHz, according to ANSI/TIA-568.2-D, IEC 61156-5 Cat.6 standard
- Overall braided screen with single pair covered by aluminum mylar have superior structural integrity and physical protection with higher flex life, provide greater shielding efficiency for RFI/EMI.
- POE++ tested to IEEE 802.3bt 100W, Bundle size 37 pcs
Applications
-
-10BASE-T Ethernet
-100BASE-T (Fast Ethernet)
-1000BASE-T (Gigabit Ethernet)
-
