High Flex SPE: Unrivaled Endurance, Built Tough for Reliability

2024.03.15

Designed for drag chain and torsion applications

In an industrial environment, it is common for cables to be moved constantly and everywhere. Cables applied to industrial robots and other moving machines must often withstand extreme torsional loads and drag chain movement. Among well-known cable manufacturers, their bending resistant SPE cables are designed and launched respectively either for drag chain or torsion application. To put ourselves in our users’ shoes, CTi’s High Flex SPE really kills two birds with one stone, saving money and hassle of buying two separate cables for the same features. Most importantly, CTi’s newly High Flex SPE is forged to achieve “5 million cycles” with a bending radius of 80 mm in drag chain test, and withstand “5 million” cycles of ±180° torsion on one-meter length, which has proven this ground-breaking design to be one of the most robust and toughest SPE in the industry for drag chain and torsion applications.



Quality Assured: CTi's in-house reliability test lab:

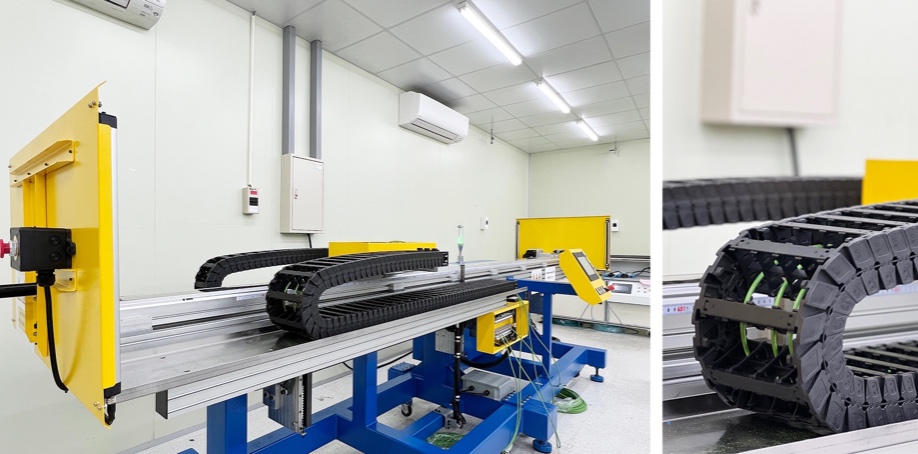

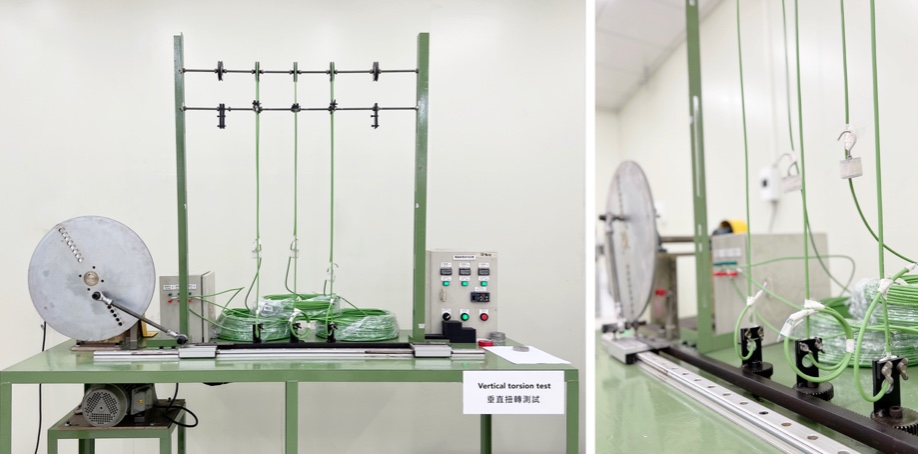

To ensure CTi’s industrial cables are reliable, long-lasting, and perform consistently and prevent system malfunctions, failures and safety risks, CTi’s High Flex SPE, PROFIENT and Industrial Ethernet Cables need to undergo rigorous and extensive tests and inspections. In CTi’s reliability test laboratory, we use drag chain, torsion and reverse bending equipment to simulate the stresses applied to our cables. In this way, we ensure that every product consistently meets the high demands of our customers, and that you always receive the quality that you expect from CTi as a leading manufacturer of Industrial Ethernet Cables.

Features of the High Flex SPE:

• Ultra-High Flexibility: Designed to withstand up to 5 million Trailing Chain and Torsion cycles.

• High-Speed Data Transfer and Connectivity Distance: Achieve transfer rates of up to 1 Gbit/s with a bandwidth of 600 MHz and up to 40 meters. (1000BASE-T1)

• Power over Data Line (PoDL) Support: Enables simultaneous power and data transmission.

• Halogen-Free: Manufactured without halogen compounds for environmental friendliness.

• Flame Resistance: Compliant with flame testing standards CMX

• Oil Resistance: Built to withstand exposure to oils, meeting UL 758 and EN 60811-404 standards.

左右滑動看表格
Standard SPE Cable High Flex Cable M8 Hybrid Cable M12 Hybrid Cable
SF/TP Solid AWG18/1 PUR SF/TP Patch AWG26/19 PUR 1x2xAWG26(For Data) + 2xAWG18(For power) 1x2xAWG26(For Data) + 4xAWG16(For power)
SF/TP Solid AWG22/1 PUR   1x2xAWG22(For Data) + 2xAWG18(For power)
SF/TP Patch AWG22/7 PUR (Without Filler)
SF/TP Patch AWG26/7 PUR (Without Filler)

Looking for more details about the High Flex SPE? Feel free to download CTi’s datasheet.

Don’t hesitate to reach out to us if you have any questions. Our team is standby for all your needs.

CTi Group is a professional cable OEM/ODM solution provider established in Taiwan for over 60 years. CTi Group has been dedicated to the integrity of high-frequency and high-speed cable industry for many years which provides customers with product design, development, and production solution by integrating outstanding tooling design, industrial automation, and procedure capability. CTi Group’s main products include LAN Cable, LAN patch cord, HDMI, USB, DP, Industrial and Medical cable, etc.
